Produktdetails:
|
|
| Herkunftsort: | Shaanxi, China |
|---|---|
| Markenname: | CHAOYUE |
| Modellnummer: | CKL-B |
|
Zahlung und Versand AGB:
|
|
| Min Bestellmenge: | 1 PC |
| Preis: | USD 170.00 - 2350.00 / pc |
| Verpackung Informationen: | Karton oder Holzkiste hängen von der Größe der Produkte ab |
| Lieferzeit: | 1 - 3 Wochen |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | 500 PC pro Monat |
|
Detailinformationen |
|||
| Innerer Durchmesser: | 25 - 100 Millimeter | Außendurchmesser: | 130 - 500 Millimeter |
|---|---|---|---|
| Länge: | 127 - 427 Millimeter | Gewicht: | 6.4 - 230 Kilogramm |
| Drehmoment: | 230 - 12300 N.m | ||
| Hervorheben: | Weisenkupplung 780 n.m eins,Durchmesser 40mm eine Weisenkupplung,Nocken-Kupplungslager des Durchmessers 40mm |
||
Produkt-Beschreibung

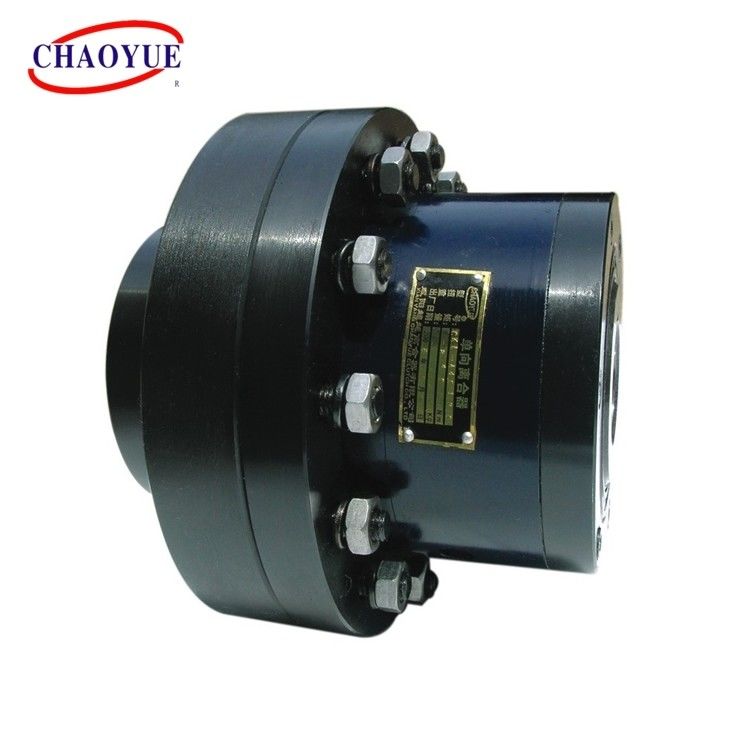

Type CKL-B is a centrifugal sprag type freewheels, self contained, sealed and bearing supported. It mainly used in occasion of high overrunning speed and lower start speed. It needs grease or oil when used.
It has same character and dimension as CKL-A.
This combination is used as overrunning clutch and extensive used in mechanism of packing, metallurgy, mine and so on.
Mounting Example
| Type | Nominal torque [N.m] |
Overrunning Limiting Speed [r / min] |
Dimension in Contour [mm] | Weight [kg] |
|||||||||
| nmin | nmax | d [H7] | dk [H7] | D | D1 | L | L1 | L2 | B | bn x tn | |||
| CKL-B2590 | 230 | 800 | 2500 | 25 | 20 - 40 | 90 | 130 | 127 | 50 | 60 | 17.5 | 4 x 1.8 | 6.4 |
| CKL-B30100 | 400 | 780 | 2500 | 30 | 20 - 50 | 100 | 160 | 151 | 60 | 66 | 20 | 5 x 2.3 | 11 |
| CKL-B35110 | 580 | 740 | 2500 | 35 | 25 - 65 | 110 | 190 | 177 | 75 | 75 | 19 | 6 x 2.8 | 17 |
| CKL-B40125 | 780 | 720 | 2500 | 40 | 25 - 65 | 125 | 190 | 183 | 75 | 86 | 17 | 6 x 2.8 | 19 |
| CKL-B45130 | 840 | 660 | 2500 | 45 | 25 - 65 | 130 | 190 | 184 | 75 | 86 | 17 | 6 x 2.8 | 19 |
| CKL-B50150 | 1400 | 610 | 2000 | 50 | 30 - 75 | 150 | 225 | 213 | 90 | 92 | 25 | 14 x 3.8 | 31 |
| CKL-B55160 | 1600 | 600 | 2000 | 55 | 35 - 90 | 160 | 270 | 233 | 100 | 104 | 29.5 | 16 x 4.3 | 47 |
| CKL-B60170 | 2200 | 490 | 2000 | 60 | 35 - 90 | 170 | 270 | 244 | 94 | 114 | 30 | 18 x 4.4 | 49 |
| CKL-B70190 | 3000 | 480 | 2000 | 70 | 45 - 110 | 190 | 340 | 318 | 140 | 134 | 38.5 | 20 x 4.9 | 90 |
| CKL-B80210 | 6800 | 450 | 1500 | 80 | 55 - 125 | 210 | 380 | 340 | 160 | 142 | 35 | 20 x 4.9 | 107 |
| CKL-B90230 | 6500 | 420 | 1500 | 90 | 65 - 140 | 230 | 440 | 369 | 155 | 159 | 50 | 25 x 6.4 | 170 |
| CKL-B100270 | 12300 | 400 | 1500 | 100 | 75 - 160 | 270 | 500 | 427 | 200 | 182 | 40.5 | 28 x 6.4 | 230 |
