Keyless axiale Kraft-Ärmel-Dehnfuge-Stahl 36mm Identifikation 38kN

Produktdetails:
Herkunftsort: Shaanxi, China
Markenname: CHAOYUE
Modellnummer: Z22
Zahlung und Versand AGB:
Min Bestellmenge: 10 PCS
Preis: USD 8.00 - 40.00 / pc
Verpackung Informationen: Karton oder Holzkiste hängen von der Größe der Produkte ab
Lieferzeit: 1 - 3 Wochen
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 1000 PC pro Monat

Detailinformationen

Innerer Durchmesser: 18 - 90 Millimeter Außendurchmesser: 40 - 125 Millimeter
Stärke: 18 - 35 Millimeter Drehmoment: 0.2 - 6,9 kN.m
Bolzen: M6 - M10 Gewicht: 0.16 - 1,25 Kilogramm
Hervorheben:

36mm Identifikations-Ärmeldehnfuge

,

Ärmeldehnfuge der axialen Kraft 38kN

,

verlegter Klammernkragen der axialen Kraft 38kN

Produkt-Beschreibung

Schließen Keyless Rad der Wellen-Z22 Feststellvorrichtung an

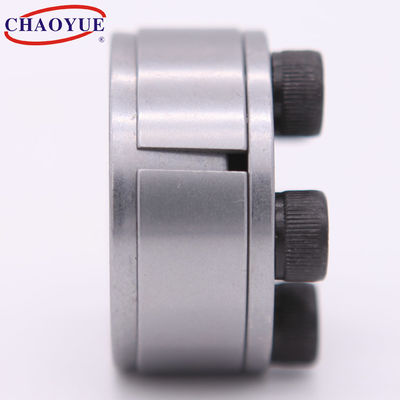

Keyless axiale Kraft-Ärmel-Dehnfuge-Stahl 36mm Identifikation 38kN 0






Befestigung des Beispiels



Keyless axiale Kraft-Ärmel-Dehnfuge-Stahl 36mm Identifikation 38kN 1





Grundlegendes Maß [Millimeter] Bolzen Bewertete Last Druck auf Welle
[N/Millimeter2]
Drehmoment von ziehen Bolzen fest
[N.m]
Gewicht
[Kilogramm]
d D L L1 L2 d1 n Axiale Kraft
[kN]
Drehmoment
[kN·m]
18 40 24 18 15 M6 5 22 0,2 260 14 0,16
19 41 24 18 15 M6 5 22 0,21 255 14 0,18
20 42 24 18 15 M6 6 26 0,26 280 14 0,19
22 44 24 18 15 M6 6 26 0,29 260 14 0,19
24 46 24 18 15 M6 6 26 0,31 230 14 0,2
25 47 24 18 15 M6 6 26 0,33 270 14 0,2
28 50 24 18 15 M6 8 35 0,49 250 14 0,24
30 52 24 18 15 M6 8 35 0,52 230 14 0,24
32 54 24 18 15 M6 8 35 0,56 200 14 0,25
35 57 28 22 18 M6 9 38 0,68 190 14 0,26
36 59 28 22 18 M6 9 38 0,7 200 14 0,26
38 60 28 22 18 M6 10 43 0,83 190 14 0,27
40 62 28 22 18 M6 10 43 0,87 225 14 0,27
42 70 36 28 24 M8 8 64 1,36 210 35 0,38
45 73 36 28 24 M8 8 64 1,45 195 35 0,45
48 76 36 28 24 M8 8 64 1,55 190 35 0,46
50 78 36 28 24 M8 8 64 1,61 195 35 0,48
55 83 36 28 24 M8 9 72 2 190 35 0,49
56 84 36 28 24 M8 9 72 2,03 195 35 0,5
60 88 36 28 24 M8 10 80 2,42 190 35 0,55
63 91 36 28 24 M8 10 80 2,54 190 35 0,56
65 93 36 28 24 M8 10 80 2,62 180 35 0,58
70 105 45 35 31 M10 9 114 4 200 70 1,01
75 110 45 35 31 M10 10 128 4,8 205 70 1,06
80 115 45 35 31 M10 10 128 5,1 190 70 1,12
85 120 45 35 31 M10 10 128 5,45 180 70 1,19
90 125 45 35 31 M10 10 153 6,9 205 70 1,25
